ตู้อบ ตู้บ่มเพาะเชื้อและเตาเผาอุณหภูมิสูง (Oven and Incubrator)
คุณสมบัติทางเทคนิค (Specifications) |
|
 |

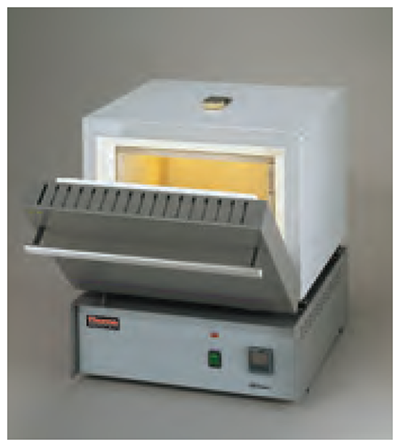

Thermo Scientific Thermolyne Premium Large Muffle Furnaces |
- Spacious 14L (0.5 cu. ft.) capacity and reaches a maximum of 1200°C
- Four heating elements are located on the chamber top, bottom and sides for enhanced
- temperature uniformity
- Built-in vent port removes undesirable contaminants and moisture to extend the life of
- the element and unit
- Rear of the chamber incorporates a 0.312 in. diameter port for monitoring chambertemperatures with independent measuring devices
- Optional stainless-steel shelf doubles load capacity (maximum temperature of 900°C)
- Door safety switch stops power to heating elements when door opens
- Thermocouple break protection cuts power to the heating elements, preventing athermocouple failure runaway condition
- Furnaces with B1, C1, and D1 control also use a mechanical over-temperature protection relay
Choice of Temperature Controllers
- A1: Digital single setpoint control; single display shows actual temperature or setpoint
- B1: Digital single setpoint control with single ramp to setpoint and a dwell; single display shows actual temperature or setpoint
- C1: Digital programmable control with one stored program of eight segments
- D1: Digital programmable control with four stored programs, 16 segments per program and Controller includes RS-232 communications
คุณสมบัติทางเทคนิค (Specifications)
| Cat. No. | Capacity | Temp. Range | Temp. Stability/ Uniformity at 1000°C | Interior D x W x H |
Exterior L x W x H |
Control | Electrical | Shipping Weight |
| F6018 | 14L (0.5 cu.ft.) |
100° to 1200°C (212° to 2192°F) | ±0.3°C ±2.2°C |
25 x 33 x 18cm (10 x 12.8 x 6.8in.) |
51 x 48.5 x 53.3cm (20.1 x 19.1 x 21in.) |
A1 | 208V 50/60Hz 11.2A 2325w |
60.8kg (134 lb.) |
| F6010* | 14L (0.5 cu.ft.) |
100° to 1200°C (212° to 2192°F) | ±0.3°C ±2.2°C |
25 x 33 x 18cm (10 x 12.8 x 6.8in.) |
51 x 48.5 x 53.3cm (20.1 x 19.1 x 21in.) |
A1 | 240V 50/60Hz 12.9A 3095w | 60.8kg (134 lb.) |
| F6028C | 14L (0.5 cu.ft.) |
100° to 1200°C (212° to 2192°F) | ±1.5°C ±4.5°C |
25 x 33 x 18cm (10 x 12.8 x 6.8in.) |
51 x 48.5 x 53.3cm (20.1 x 19.1 x 21in.) |
B1 | 208V 50/60Hz 19.2A 4000w |
60.8kg (134 lb.) |
| F6020C | 14L (0.5 cu.ft.) |
100° to 1200°C (212° to 2192°F) | ±1.5°C ±4.5°C |
25 x 33 x 18cm (10 x 12.8 x 6.8in.) |
51 x 48.5 x 53.3cm (20.1 x 19.1 x 21in.) |
B1 | 240V 50/60Hz 18.3A 4400w | 60.8kg (134 lb.) |
| F6020C-33 | 14L (0.5 cu.ft.) |
100° to 1200°C (212° to 2192°F) | ±1.5°C ±4.5°C |
25 x 33 x 18cm (10 x 12.8 x 6.8in.) |
51 x 48.5 x 53.3cm (20.1 x 19.1 x 21in.) |
B1 | 240V 50/60Hz 18.3A 4400w | 60.8kg (134 lb.) |
| F6028C-80 | 14L (0.5 cu.ft.) |
100° to 1200°C (212° to 2192°F) | ±1.5°C ±4.5°C |
25 x 33 x 18cm (10 x 12.8 x 6.8in.) |
51 x 48.5 x 53.3cm (20.1 x 19.1 x 21in.) |
C1 | 208V 50/60Hz 19.2A 4000w | 60.8kg (134 lb.) |
| F6020C-80 | 14L (0.5 cu.ft.) |
100° to 1200°C (212° to 2192°F) | ±1.5°C ±4.5°C |
25 x 33 x 18cm (10 x 12.8 x 6.8in.) |
51 x 48.5 x 53.3cm (20.1 x 19.1 x 21in.) |
C1 | 240V 50/60Hz 18.3A 4400w | 60.8kg (134 lb.) |
| F6020C-33-80 | 14L (0.5 cu.ft.) |
100° to 1200°C (212° to 2192°F) | ±1.5°C ±4.5°C |
25 x 33 x 18cm (10 x 12.8 x 6.8in.) |
51 x 48.5 x 53.3cm (20.1 x 19.1 x 21in.) |
C1 | 240V 50/60Hz 18.3A 4400w |
60.8kg (134 lb.) |
| F6038CM | 14L (0.5 cu.ft.) |
100° to 1200°C (212° to 2192°F) | ±1.5°C ±4.5°C |
25 x 33 x 18cm (10 x 12.8 x 6.8in.) |
51 x 48.5 x 53.3cm (20.1 x 19.1 x 21in.) |
D1 | 208V 50/60Hz 19.3A 4000w | 60.8kg (134 lb.) |
| F6030CM | 14L (0.5 cu.ft.) |
100° to 1200°C (212° to 2192°F) | ±1.5°C ±4.5°C |
25 x 33 x 18cm (10 x 12.8 x 6.8in.) |
51 x 48.5 x 53.3cm (20.1 x 19.1 x 21in.) |
D1 | 240V 50/60Hz 18.3A 4400w | 60.8kg (134 lb.) |
| F6030CM-33 | 14L (0.5 cu.ft.) |
100° to 1200°C (212° to 2192°F) | ±1.5°C ±4.5°C |
25 x 33 x 18cm (10 x 12.8 x 6.8in.) |
51 x 48.5 x 53.3cm (20.1 x 19.1 x 21in.) |
D1 | 240V 50/60Hz 18.3A 4400w | 60.8kg (134 lb.) |
